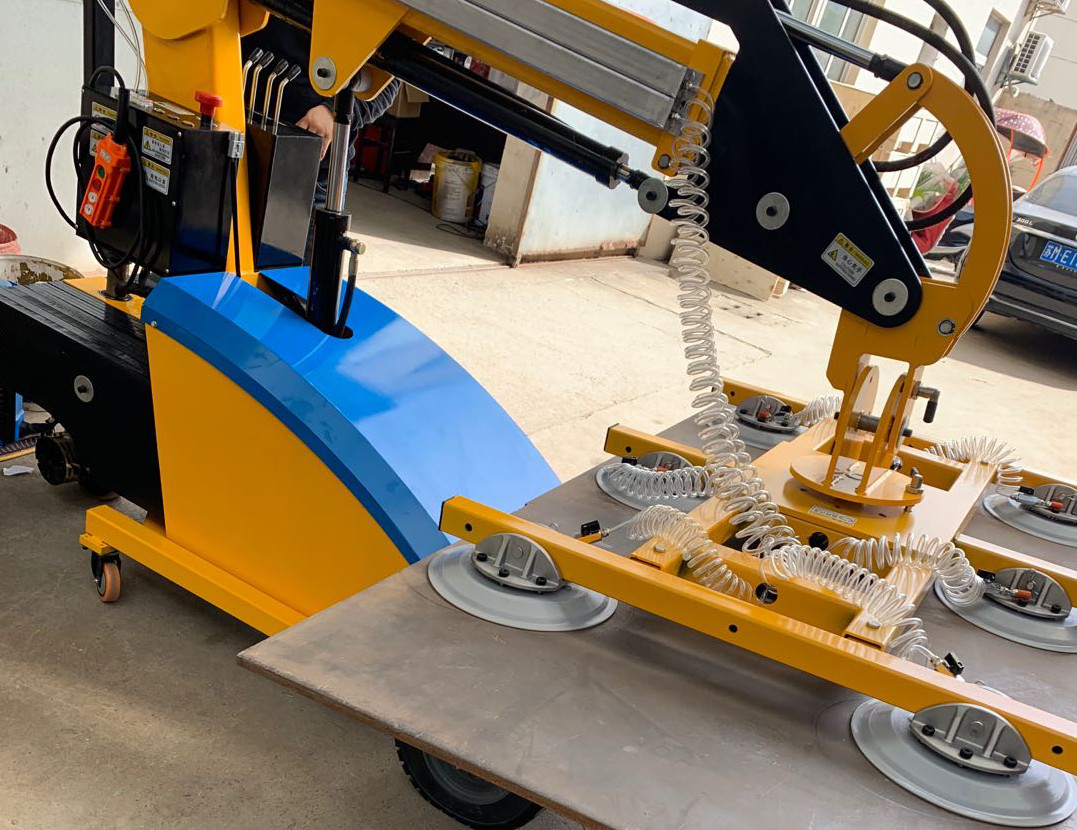

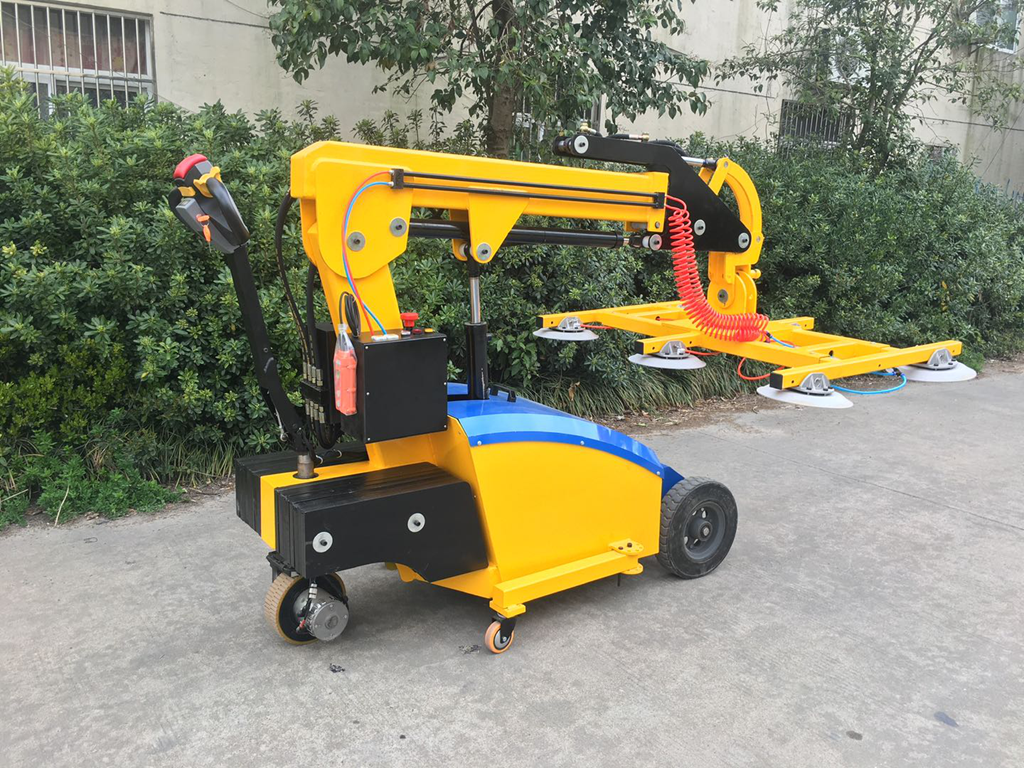

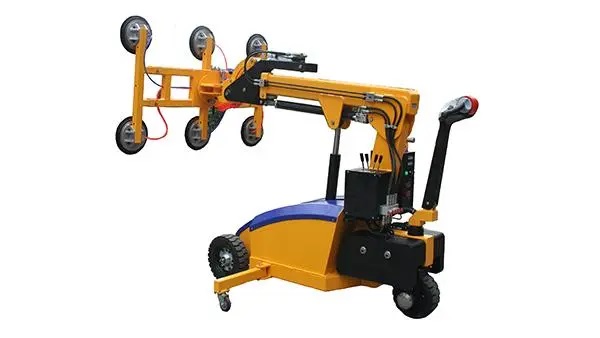

Glass Installation Robot. It can achieve electric walking, lifting, lowering, taking and releasing air by electrical. Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal
◆Adjustable design, can be changed the position of the suction cups and assembled in various ways according to needs, each suction equipped with a separate control valve, can handle glass of different shapes and sizes.
◆Adopt Anercan THOMAS vacum pump, ltaly METALROTA heavy type driving wheel, Swiss BUCHER power unit and intelligent maintenance-free battery, during the use, without air source or power supply.
◆Withe Japan PANASONIC digital display vacuum pressure switch and battery fuel gauge, clearly monitor the safe operation if the equipment.
◆Adjustable design, can be changed the position of the suction cups and assembled in various ways according to needs, each suction equipped with a separate control valve, can handle glass of different shapes and sizes.
◆Adopt Anercan THOMAS vacum pump, ltaly METALROTA heavy type driving wheel, Swiss BUCHER power unit and intelligent maintenance-free battery, during the use, without air source or power supply.
◆Withe Japan PANASONIC digital display vacuum pressure switch and battery fuel gauge, clearly monitor the safe operation if the equipment.
| Glass Installation Robot | Models | ||||
| Rated load capacity(kg) | 300 | 350 | 400 | 500 | 600 |
| Manual rotating | 360 | 360 | 360 | 360 | 360 |
| lifting height (mm) | 3500 | 3500 | 3500 | 3500 | 3500 |
| Manipulation | Walkie Type | ||||
| Battery (V/A) | 2x12/80 | 2x12/90 | 2x12/100 | 2x12/120 | 2x12/120 |
| Charger (V/A) | 24/12 | 24/12 | 24/15 | 24/18 | 24/18 |
| Drive motor (V/W) | 24/1200 | 24/1200 | 24/1200 | 24/1500 | 24/1500 |
| Lift motor (V/W) | 24/2000 | 24/2000 | 24/2000 | 24/2200 | 24/2200 |
| Overall Width (mm) | 810 | 810 | 810 | 810 | 810 |
| Overall Length (mm) | 2660 | 2660 | 2660 | 2800 | 2800 |
| Driving wheel dimension (mm) | 250*80 | 250*80 | 250*80 | 300*100 | 300*100 |
| Pads diameter (mm) | 300 | 300 | 300 | 300 | 300 |
| Glass size (mm) | 3660*2440 | 3660*2440 | 3660*2440 | 3660*2440 | 3660*2440 |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
