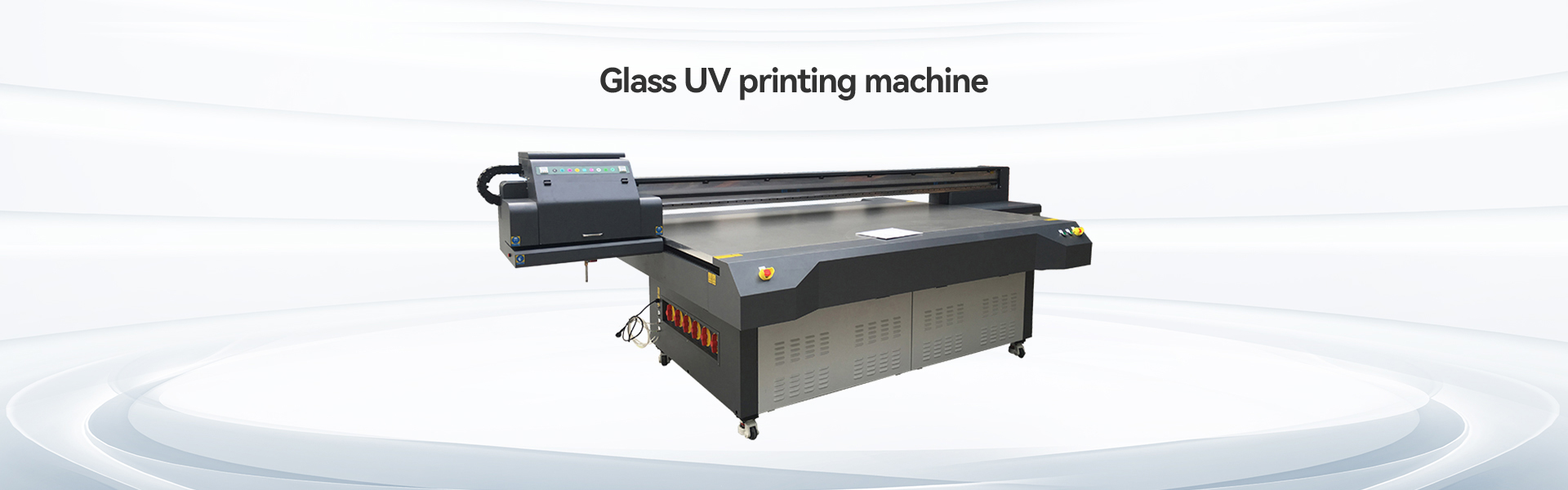

glass uv printing machine
◆Japanese imported Print head for industrial production.
◆ Advanced printhead anti-crash system to avoid the risk of a collision between printer carriage and material optional.

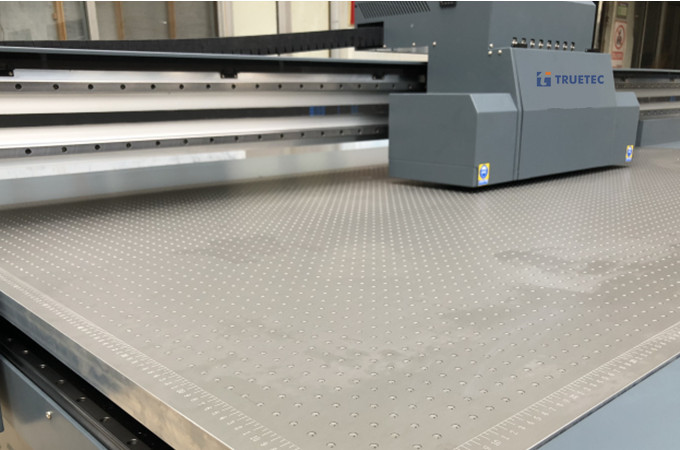

◆3.3x2.1m vacuum table for large format sheet printing work.
◆Hard anodized vacuuming platform to avoid damaging the platform by rigid materials.
◆CMYK W and varnish optional for glossy surface and high quality flatbed printing ◆Auto height detection technology to detect print media thickness automatically optional ◆Automatic anti-static design to avoid dust ink drops flying optional
◆Japanese imported Print head for industrial production.
◆ Advanced printhead anti-crash system to avoid the risk of a collision between printer carriage and material optional.
◆3.3x2.1m vacuum table for large format sheet printing work.
◆Hard anodized vacuuming platform to avoid damaging the platform by rigid materials.
◆CMYK W and varnish optional for glossy surface and high quality flatbed printing ◆Auto height detection technology to detect print media thickness automatically optional ◆Automatic anti-static design to avoid dust ink drops flying optional
| Product Model | YC3221L |
| Printhead Technology | Drop-on demand piezo electric |
| Printhead Control | Printhead voltage is software adjustable |
| Printhead Type | RICOH GEN5 |
| Printhead Number | 4 - 8 |
| Ink Characteristics | UV Curing Ink |

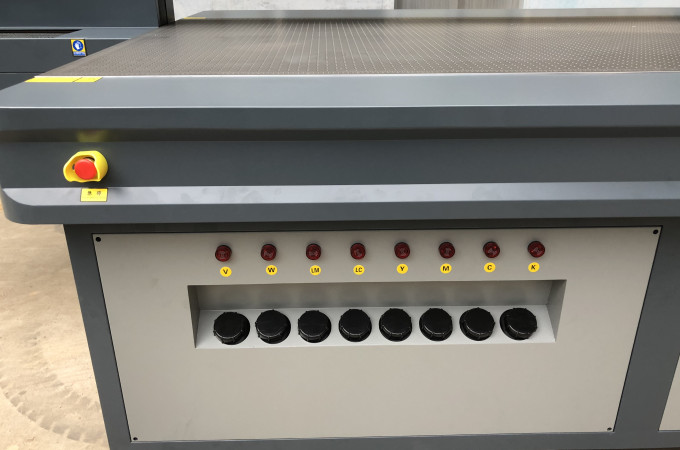

| Ink reservoirs | Refillable on the fly while printing/1000ml per color |
| Lamp | UV LED lamp |
| Color Control | ICC based color, curves and density adjustment |
| Printhead Arrangement | C M Y K W varnish optional |
| Cleaning System | Positive Pressure Cleaning |
| Guide Rail | Made in Korea |
| Working Table | Vacuum Sucking |
| Sheet Printing Size | 3300*2100mm |
| Print Interface | USB2.0 |
| Media Thickness | 0- 100mm |
| Print Resolution | 300*900dpi,600*600dpi,600*900dpi,600*1200dpi |
| Printing Speed | 15sqm/h-30sqm/h |
| Life of Printed Image | 3 years(outdoor),10years(indoor) |
| File Format | TIFF,JPEG,Postscript3,EPS,PDF etc. |
| RIP Software | Photoprint optional |
| Power Supply | 220V 50/60Hz(10%) >15A |
| Operation Environment | Temperature 20 to 28℃, Humidity 40% to 60% |
| Machine Dimension | 5370*3780*1460mm |
| Weight | 2000kg |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
