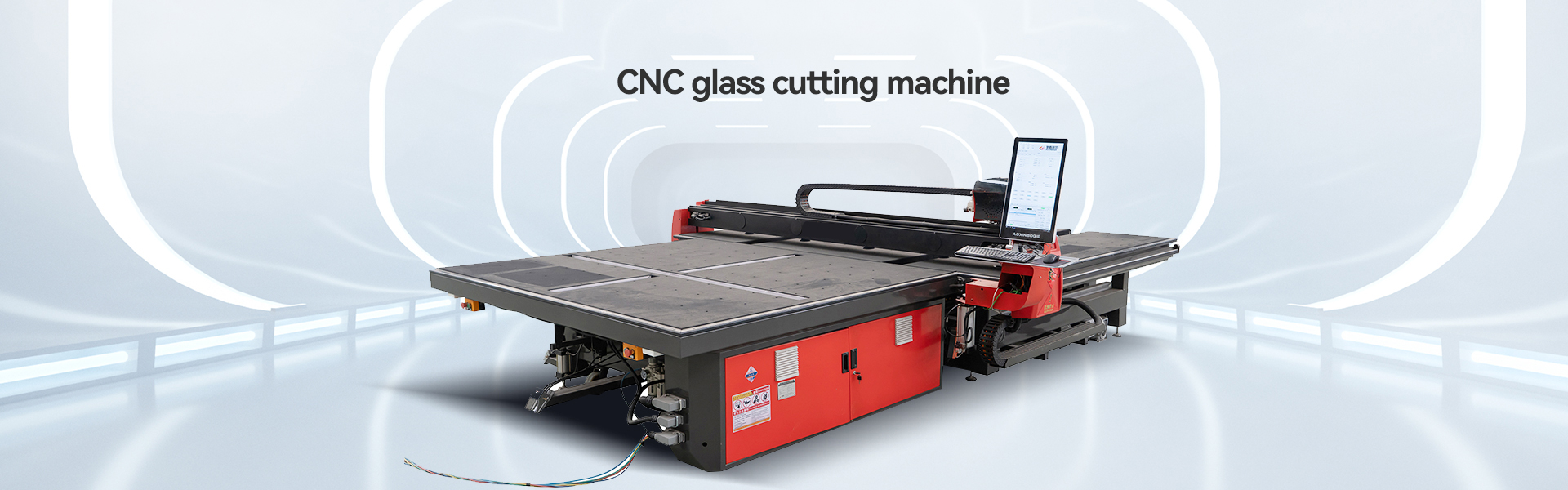

Efficient glass cutting machine, easy to move and operate.

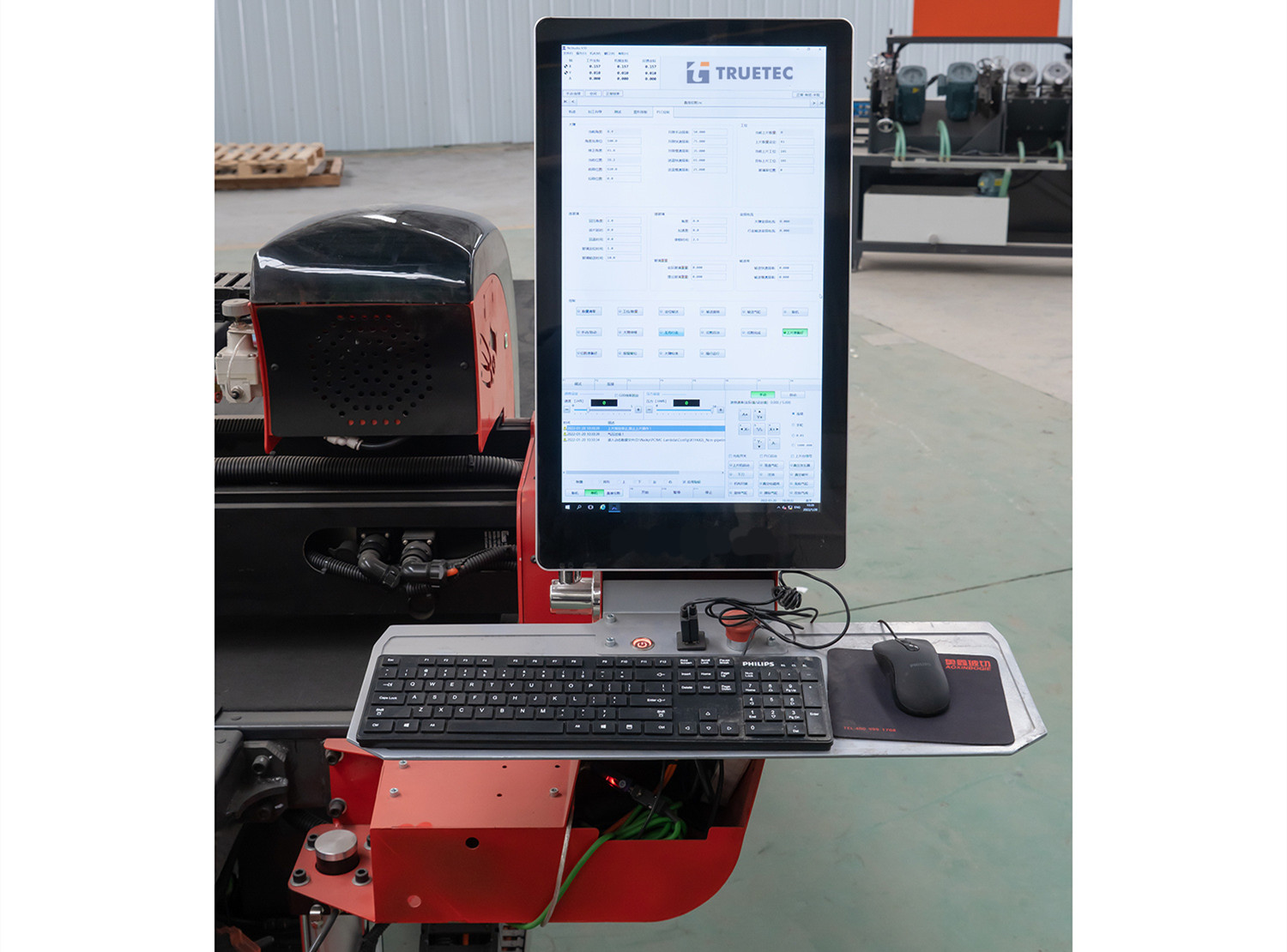

◆Industrial computer input, USB data can be imported, easy to operate.
◆Siemens control system and motion controller, imported servo motor and driver, quality assurance.
◆Three plywood countertops, waterproof, fireproof and high temperature resistance, no deformation.
◆First-class optimization system, stable performance, optimization rate as high as 95-98%.
◆The frame is made of 6mm manganese steel, with aging/high temperature annealing repeated twice treatment after welding, not easy to deform and more stable.
◆The whole machine is made of integrated beam, aviation aluminum material, high precision,stable and not easy to deform.
◆Japan's Panasonic laser detector, automatic scanning, automatic positioning, automatic edge finding.
◆The label printing function can be added, automatic labeling, efficiency is high.
◆Industrial computer input, USB data can be imported, easy to operate.
◆Siemens control system and motion controller, imported servo motor and driver, quality assurance.
◆Three plywood countertops, waterproof, fireproof and high temperature resistance, no deformation.
◆First-class optimization system, stable performance, optimization rate as high as 95-98%.
◆The frame is made of 6mm manganese steel, with aging/high temperature annealing repeated twice treatment after welding, not easy to deform and more stable.
◆The whole machine is made of integrated beam, aviation aluminum material, high precision,stable and not easy to deform.
◆Japan's Panasonic laser detector, automatic scanning, automatic positioning, automatic edge finding.
◆The label printing function can be added, automatic labeling, efficiency is high.
| Model | CNC-3826 | CNC-2621 |
| Dimensions L*W*H: | 4500mm*3000mm*1420mm | 3000mm*2600mm*1420mm |
| Worktable height | 800±30mm (foot adjustable) | 800±30mm (foot adjustable) |
| Power requirements | 380V, 50Hz | 380V, 50Hz |
| Installed power | 10kW | 8kW |

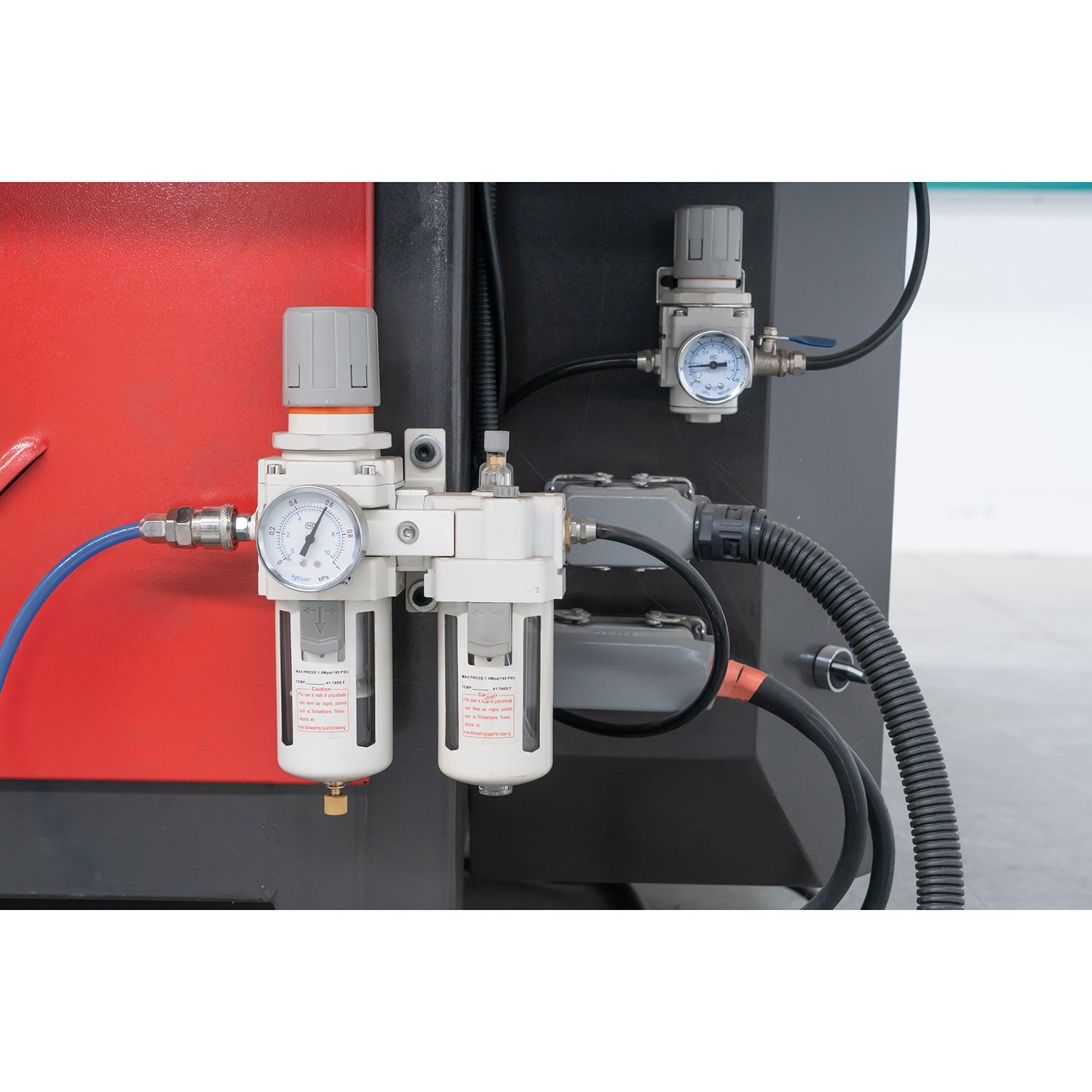

| Compressed air | 0.6Mpa | 0.6Mpa |
| Cutting glass size | Max.3660*2440mm | Max. 2440*2000mm |
| Cutting glass thickness | 3~19mm | 2~19mm |
| Head beam speed X axis | 0～200m/min (can be adjusted) | 0～200m/min (can be adjusted) |
| Head speed Y axis | 0～200m/min (can be adjusted) | 0～200m/min (can be adjusted) |
| Cutting acceleration | ≥6m/s² | ≥6m/s² |

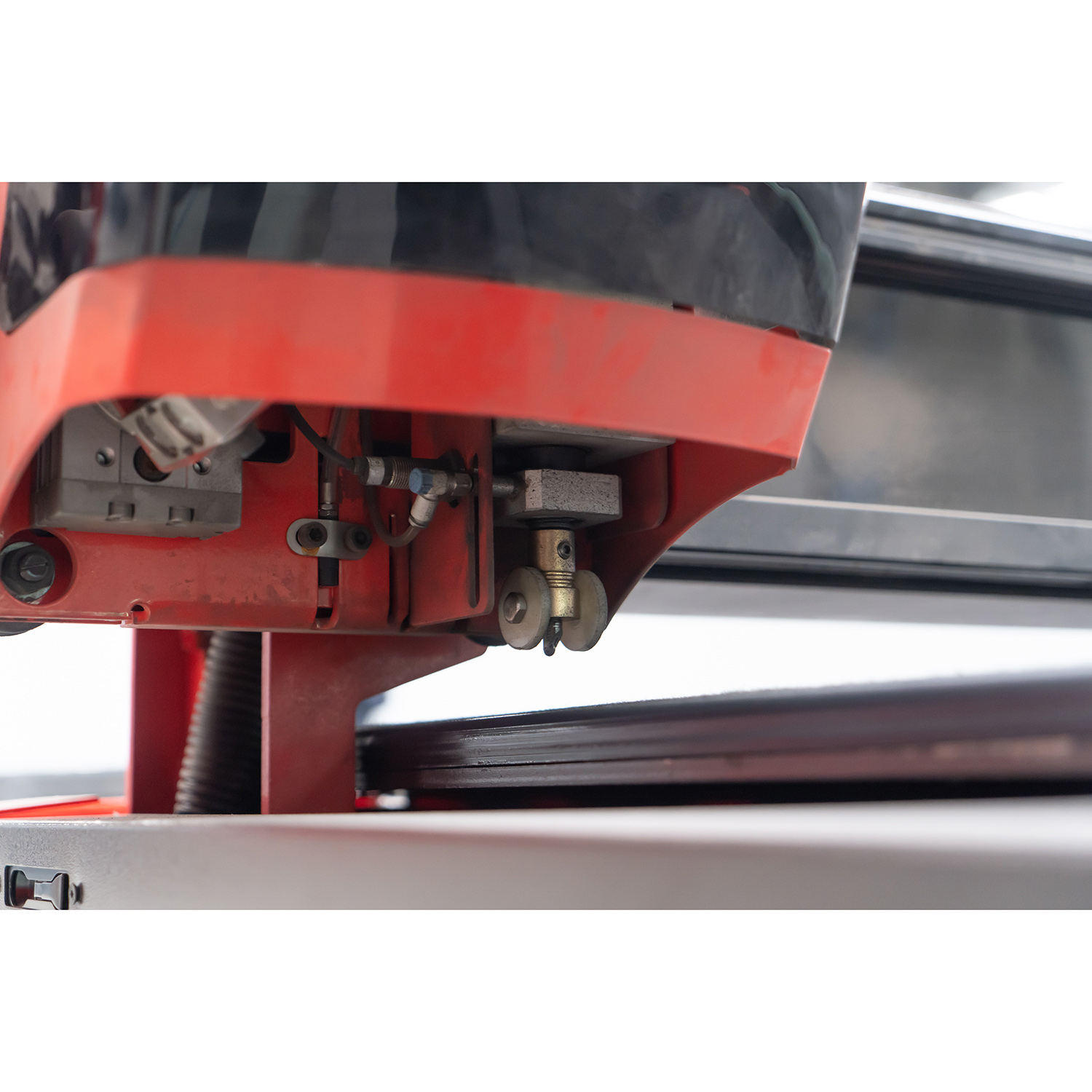

| The cutter | Cutting head can be rotated 360 degrees (accurately cutting straight lines and special shapes) | Cutting head can be rotated 360 degrees (accurately cutting straight lines and special shapes) |
| Cutting accuracy | ≤±0.2mm/m | ≤±0.2mm/m |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
