Feature And Function

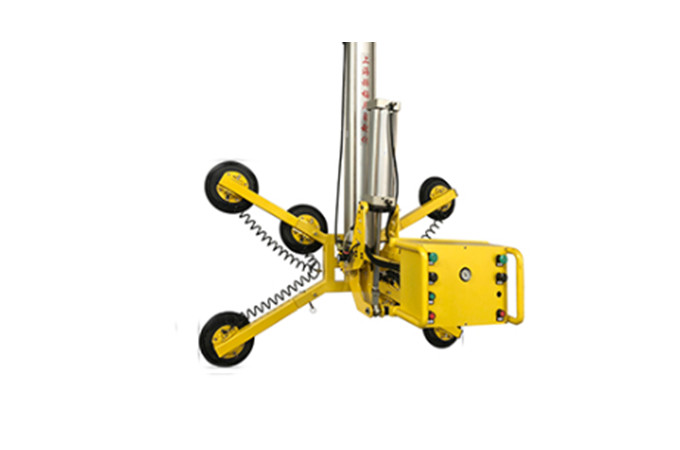

HP-GQ series of equipment are widely used in transition of various kinds of hollow glass, laminated glass, raw glass and tempered glass, etc.

Pressure indicator

Double colors pressure indicator is adopted, so as to observe safe operation of equipment more clearly.

Air cylinder adopted

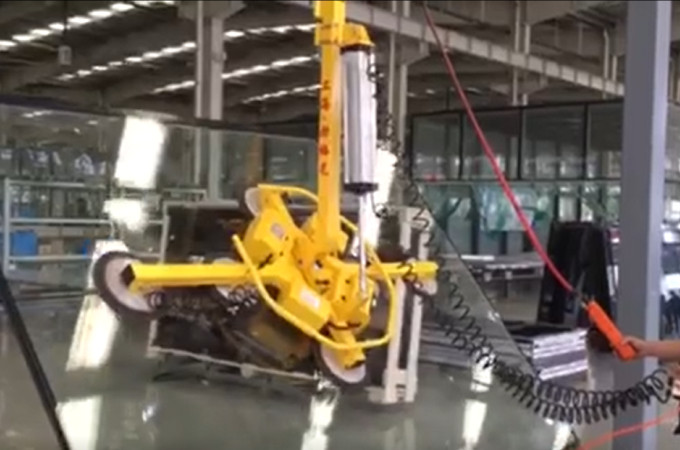

Air cylinder is adopted in lifting, flipping and rotation of equipment; no need any additional power, which thus solve the potential safety problems caused by power connection

Pressure indicator

Double colors pressure indicator is adopted, so as to observe safe operation of equipment more clearly.

Air cylinder adopted

Air cylinder is adopted in lifting, flipping and rotation of equipment; no need any additional power, which thus solve the potential safety problems caused by power connection

Technical Parameter
ModelHP-GQ-2SHP-GQ-4SHP-GQ-6S
Max. load capacity200KG400KG600KG
Safety Loading150KG250KG400KG
PerformanceFlip 90 degrees (pneumatic), Rotate 90 degrees (pneumatic)
Power SystemCompressed air (0.6-0.8Mpa)Compressed air (0.6-0.8Mpa)Compressed air (0.6-0.8Mpa)
Quantity of sucker246

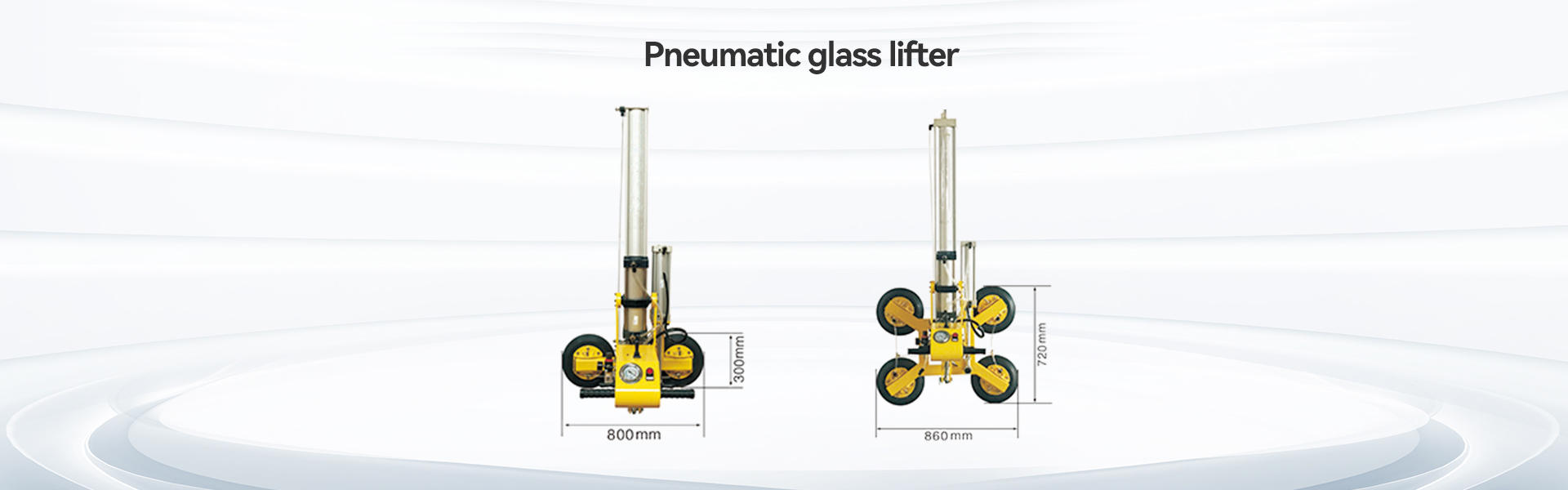

Size800*300mm860*720mm1800*1200mm
