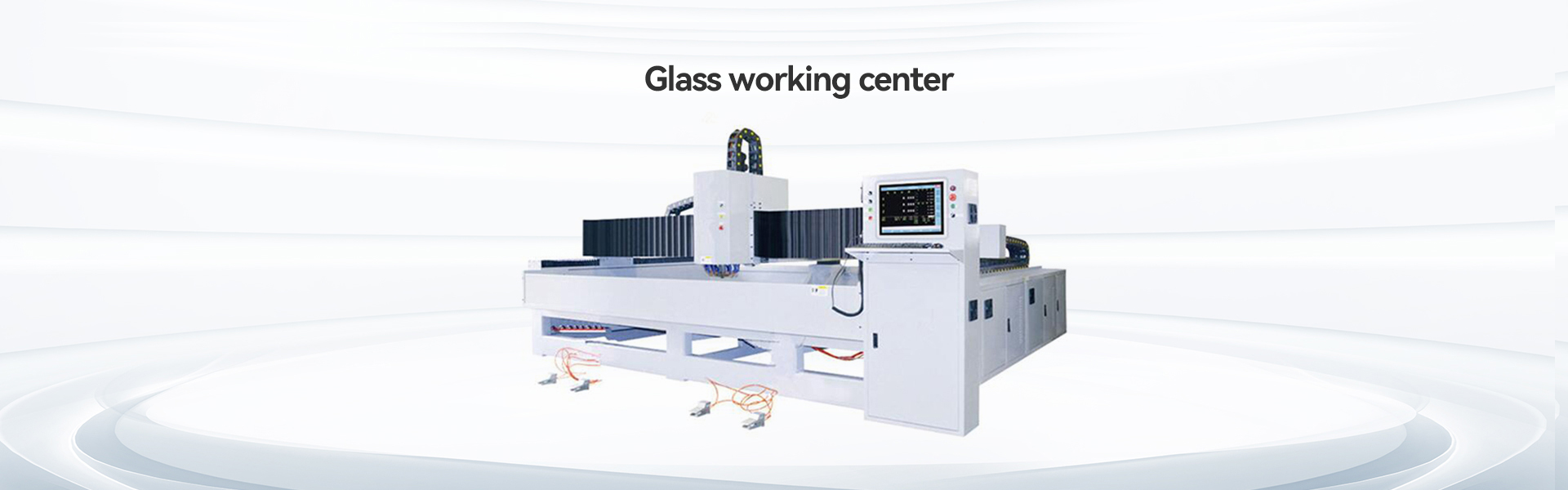

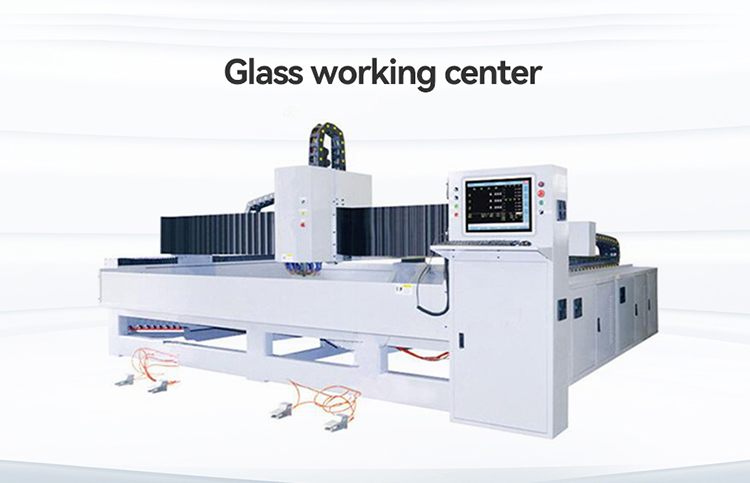

CNC Glass Working Center is a 3-axis working center with high technology.It can perfectly perform complicated working in short time and the processed sheet is of high level which realized to obtain from a CNC machine with a reduced investment.
◆The CNC working center applies numerical operation and control system to achieve dynamic management of each axis and speed precision control.So the glass shape is of precision and the processed sheet is of high quality.
◆The flexibility of control system solves the requirement of different products. The whole processing can be finished automatically without any human interference.

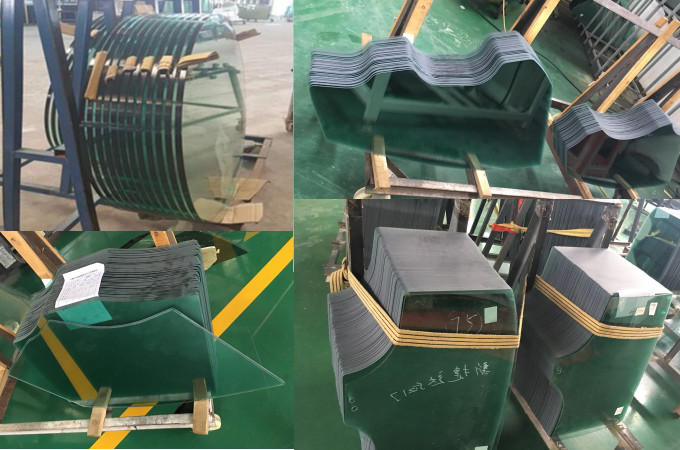

◆CNC Glass Working Center is perfect to process automotive glass, furniture glass, household appliance glass, door glass, shower glass and other shaped glass.
◆The CNC working center applies numerical operation and control system to achieve dynamic management of each axis and speed precision control.So the glass shape is of precision and the processed sheet is of high quality.
◆The flexibility of control system solves the requirement of different products. The whole processing can be finished automatically without any human interference.
◆CNC Glass Working Center is perfect to process automotive glass, furniture glass, household appliance glass, door glass, shower glass and other shaped glass.
| Max. Glass Size | 3000mm*1500mm |
| Min. Glass Size | 280mm*280mm |
| Glass Thickness | 2-19mm |
| Positioning Accuracy | 0.005/400mm |
| Processing Speed | 0-10m/min |
| Electro-spindle Speed | 0-10000rpm |
| Spindle Power | 7.5kw |
| Toolholder Spec. | BT-40 |
| Installed Power | 15kw |
| Compressed Air Supply | 0.6-0.8mpa |
| Power Supply | 3P 380V 50HZ or Customized |
| Water Supply | Clean Water |
| Machine Size | 4500*2300*2200mm |
| Machine Weight | About 5000kgs; |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
