Feature And Function

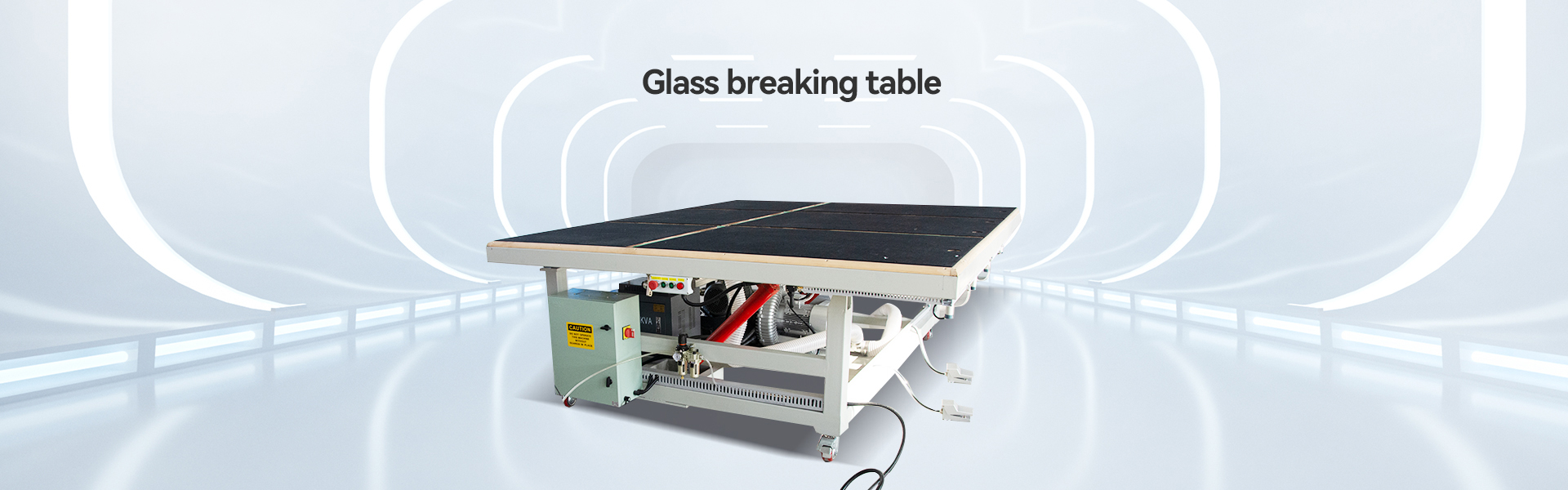

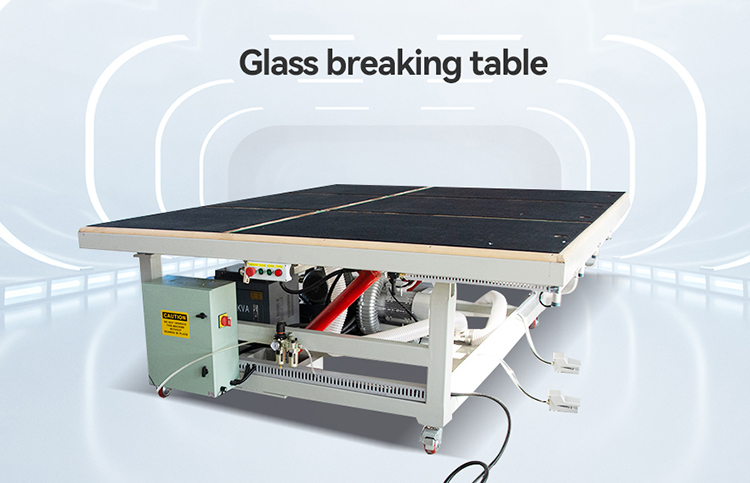

Glass cutting table for cutting glass to save manpower and material resources.

Operations Security

◆This machine working surface is equipped with air floating blower system for easy handing and shifting movement of the glass.

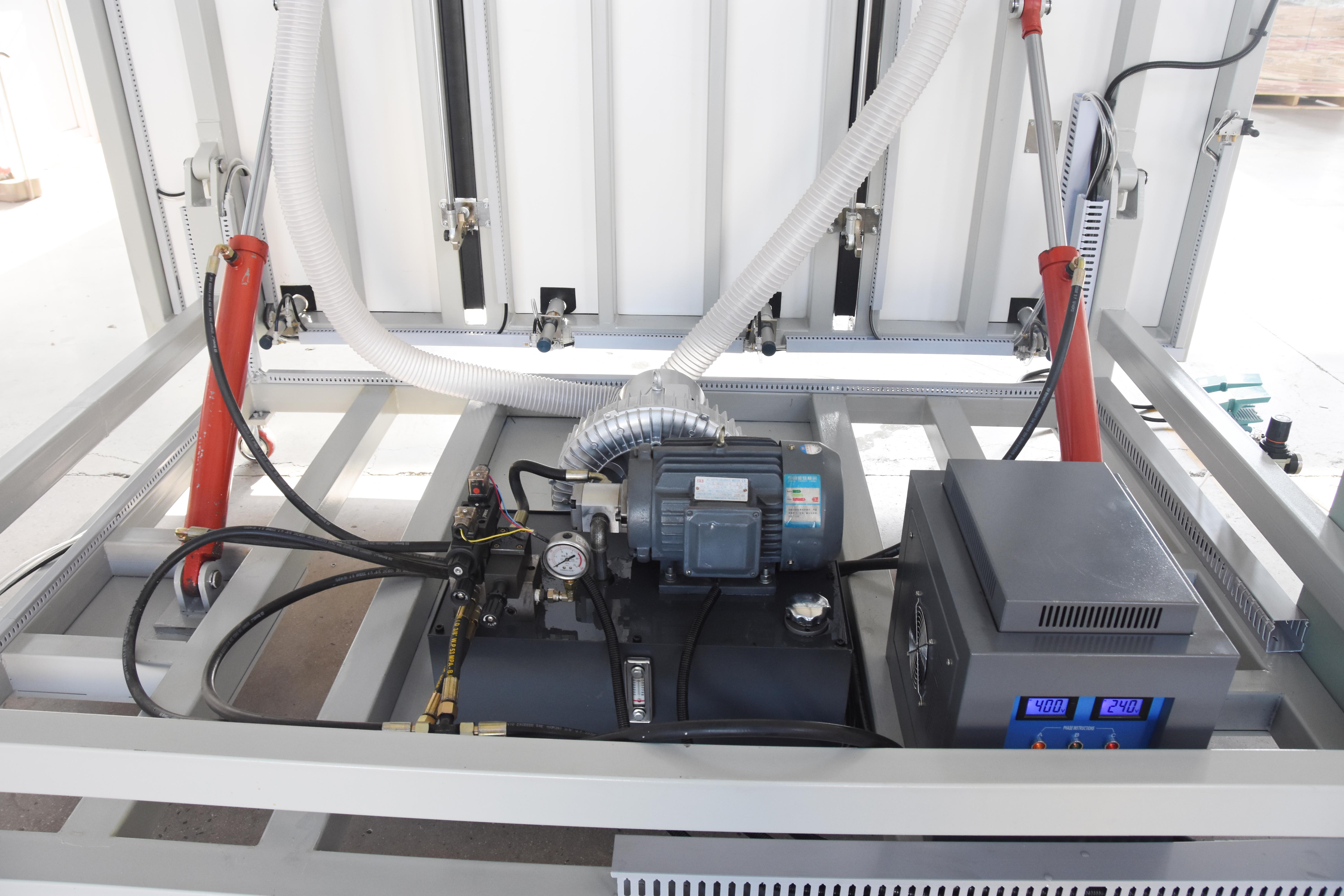

◆With hydraulically operated tilting table for stable and smooth ascending and descending motion and had pinions for catching the glass to ensure safety during loading of glass.

Manipulation of the convenient

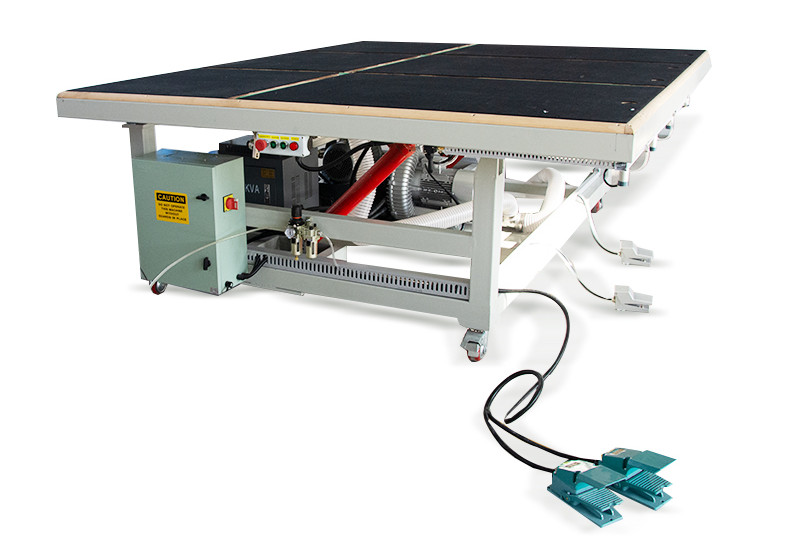

◆The pneumatically controlled X and Y glass breaking bars can be activated by individual foot pedal switch to control each work position and section for large size cutting.

Operations Security

◆This machine working surface is equipped with air floating blower system for easy handing and shifting movement of the glass.
◆With hydraulically operated tilting table for stable and smooth ascending and descending motion and had pinions for catching the glass to ensure safety during loading of glass.

Manipulation of the convenient

◆The pneumatically controlled X and Y glass breaking bars can be activated by individual foot pedal switch to control each work position and section for large size cutting.

Technical Parameter
ModelTP-3020TP-2520
Dimensions L*W*H:3000mm*2000mm*800mm2500mm*2000mm*800mm
Worktable height800±30mm (foot adjustable)800±30mm (foot adjustable)
Power requirements380V, 50Hz380V, 50Hz
Installed power1.5kW1.5kW
Max. glass size3000*2000mm2500*2000mm
Glass thickness3~19mm3~19mm
Breaking bar2+12+1
