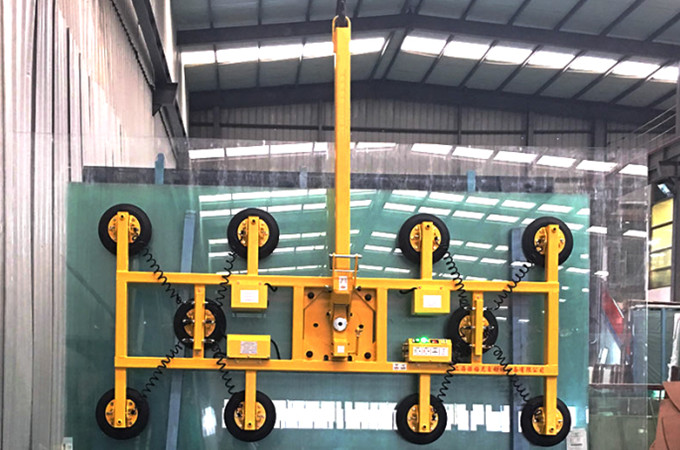

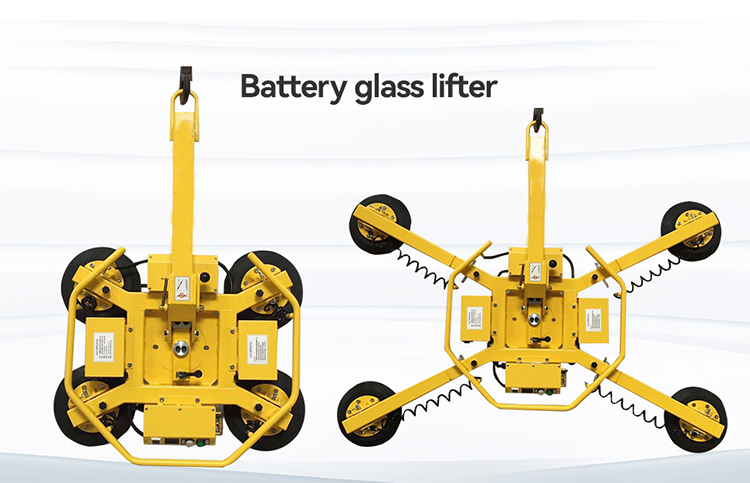

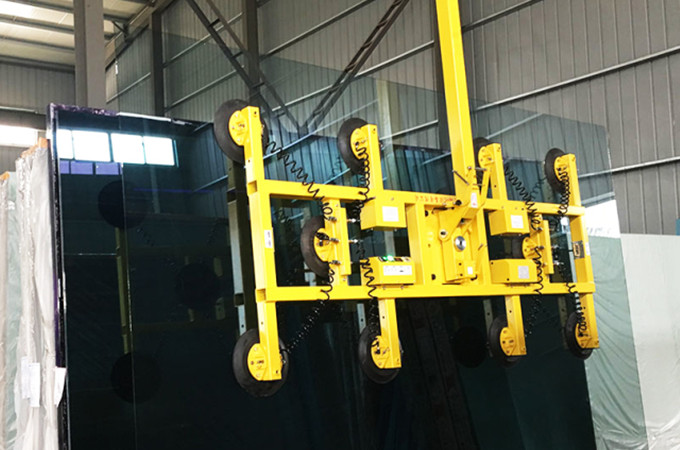

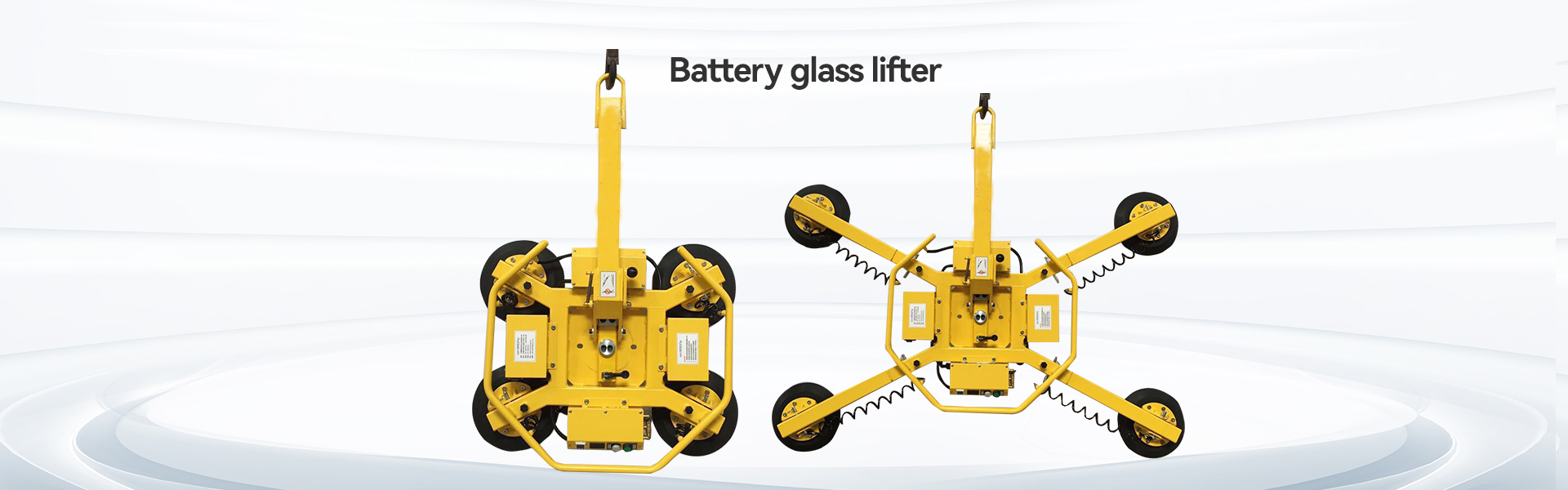

This machine is widely used in transition of various kind of hollow glass, laminated glass, raw glass and tempered glass, etc.

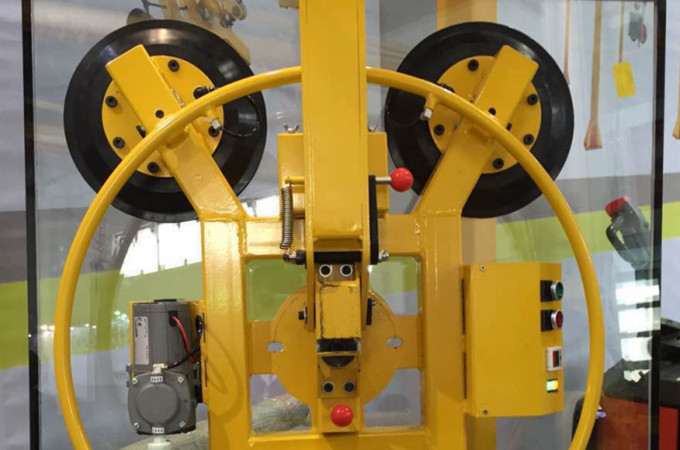

American THOMAS DCvacuum pump+ Panasonic DC battery are adopted; When using, there is no need to connect other air source or power source.
Digital display vacuum pressure swith and battery charge indicator, which can monitor safe operation of equipment more clearly.
With vacuum pressure charging system, equipment can ensure the whole vacuum system within a relatively constant safe pressure value during transition.
American THOMAS DCvacuum pump+ Panasonic DC battery are adopted; When using, there is no need to connect other air source or power source.
Digital display vacuum pressure swith and battery charge indicator, which can monitor safe operation of equipment more clearly.
With vacuum pressure charging system, equipment can ensure the whole vacuum system within a relatively constant safe pressure value during transition.
| Model | HP-GX-4S | HP-GX-6S | HP-GX-8S | HP-GH-10S | HP-GH-20S |
| Max. load capacity | 400KG | 600KG | 800KG | 800-1200KG | 1500-2000KG |
| Performance | Flip 90 degrees(Manual), Rotate 360 degrees(Manual) | ||||
| Power System | DC12V | DC12V | DC12V | DC12V | DC12V |
| Charger | AC220V | AC220V | AC220V | AC220V | AC220V |
| Quantity of sucker | 4 | 6 | 8 | 10 | 20 |
| Size(mm) | 900×730×380 | 1800×1190×240 | 1800×1190×240 | 2800x1400x220 | (3000+2000)x1400x360 |
