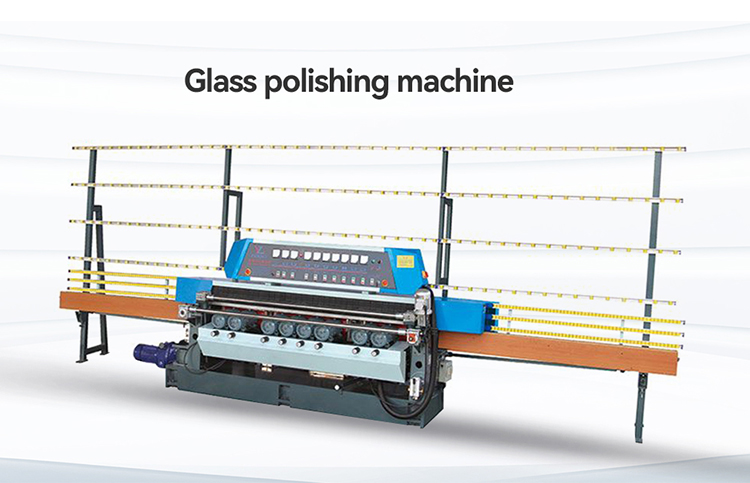

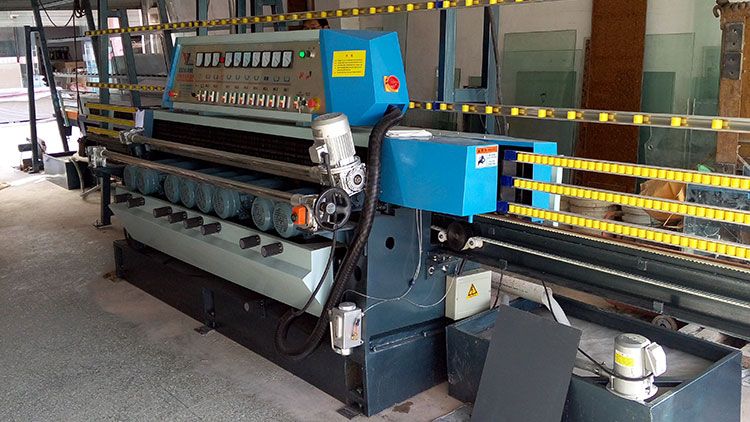

This glass beveling machine is a 9/10/11 head bevel and bottom grinding machine, it can complete rough grinding and fine grinding in one time, the polished effect is similar to a mirror surface, with accurate ground angles.

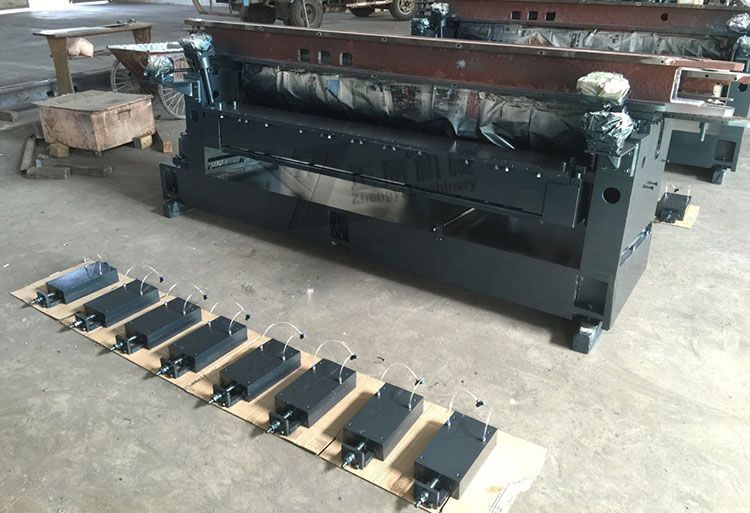

◆Base、Beam、Swing frame、upright all is used by high-quality castings, strong and stable body.
◆ABB international brands grinding motor, 2.2 KW wide range stepless speed changer, frequency adjustment.
◆The front and rear delivery pad is used 40cr steel and 55-degree high-frequency hardening to its degree of hard wear.
◆Aluminum scaffolding, timing belt transmission.
◆Stainless steel water tank、there are two oil pump in both side to supply the lubrication for delivery pad pallet and so on activities parts.
◆Rough grinding wheel, finish grinding wheel, polishing wheel: it all use China high-quality wheel and Italy wheel.
◆Glass Beveling machine can accord customer requirement to design.
◆Base、Beam、Swing frame、upright all is used by high-quality castings, strong and stable body.
◆ABB international brands grinding motor, 2.2 KW wide range stepless speed changer, frequency adjustment.
◆The front and rear delivery pad is used 40cr steel and 55-degree high-frequency hardening to its degree of hard wear.
◆Aluminum scaffolding, timing belt transmission.
◆Stainless steel water tank、there are two oil pump in both side to supply the lubrication for delivery pad pallet and so on activities parts.
◆Rough grinding wheel, finish grinding wheel, polishing wheel: it all use China high-quality wheel and Italy wheel.
◆Glass Beveling machine can accord customer requirement to design.
| Model | ZXM261 | ZXM361 | ZXM371 |
| Voltage | 380V 3PHASE 50HZ. | 380V 3PHASE 50HZ. | 380V/50Hz |
| Power(W) | 21.5kw | 23kw | 25kw |
| Glass thickness | 3-19mm | 3-19mm | 3-19mm |
| Min. grinding size | 100*100mm | 100*100mm | 100*100mm |
| Max width of bevel | 40mm | 45mm | 0-50mm |
| Working speed | 0.7-3.5m/min | 0.7-4.5m/min | 0.5-4.5m/min |
| Grinding angle | 3-30 degree | 3-30 degree | 3-30 degree |
| Grinding wheel number | 9 | 10 | 11 |
| Dimension | 6800*1200*2500mm | 7200*1200*2500mm | 7600*1200*2500mm |
| Weight | 4000kg | 4500kg | 4800kg |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
