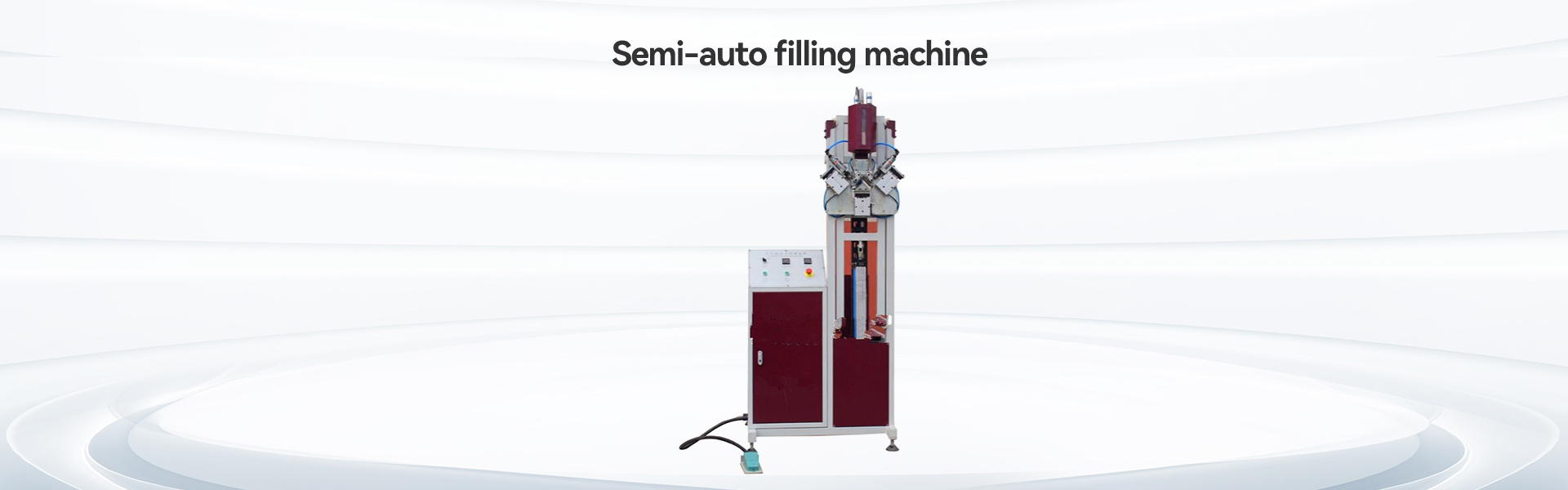

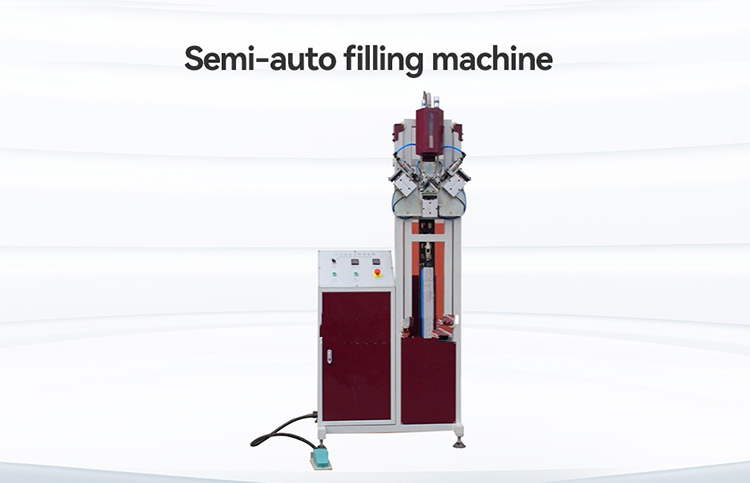

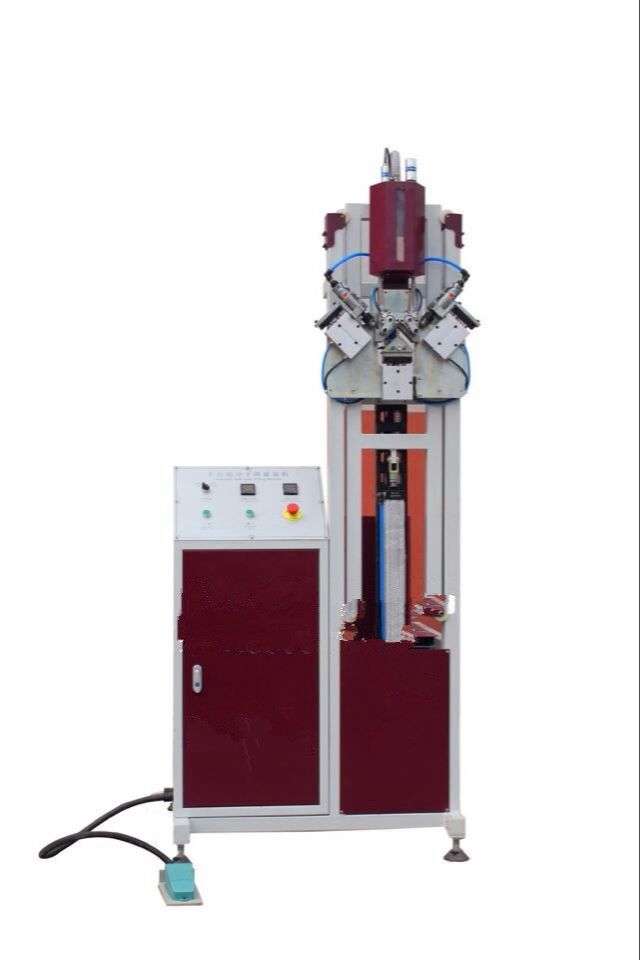

Equipment Features-Semi-Automatic molecular sieve filling machine, it's a necessary insulating glass equipment.
◆The machine adopts a SIEMENS PLC control system.
◆Human-computer interface makes machine convenient to operate.
◆The filling height can be optionally adjusted according to the size of an aluminum bar so that the trail range is extensive.
◆The machine has an automatic supplementing function.
◆The machine adopts a SIEMENS PLC control system.
◆Human-computer interface makes machine convenient to operate.
◆The filling height can be optionally adjusted according to the size of an aluminum bar so that the trail range is extensive.
◆The machine has an automatic supplementing function.
| Model | JYG-03 |
| Power Supply | 380V/3P |
| Power | 1.0KW |
| Supply gas pressure | 0.6Mpa |
| Molecular sieve diameter | 0.5-0.9mm |
| Filling speed | 5-6 seconds |
| Aluminum frame width | 6-24mm |
| Over dimension | 1300x1100x3650mm |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
