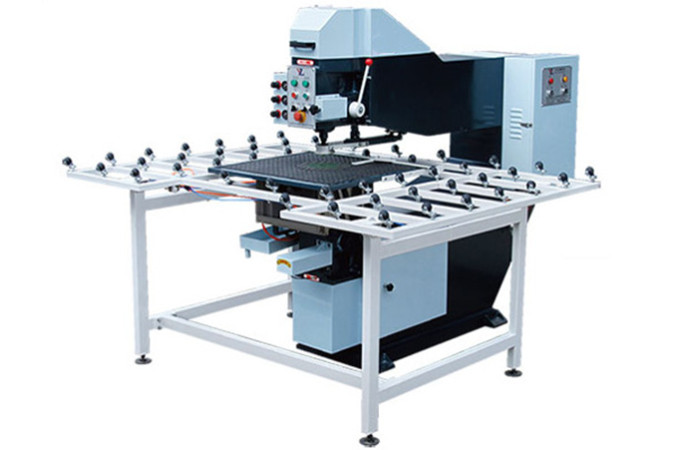

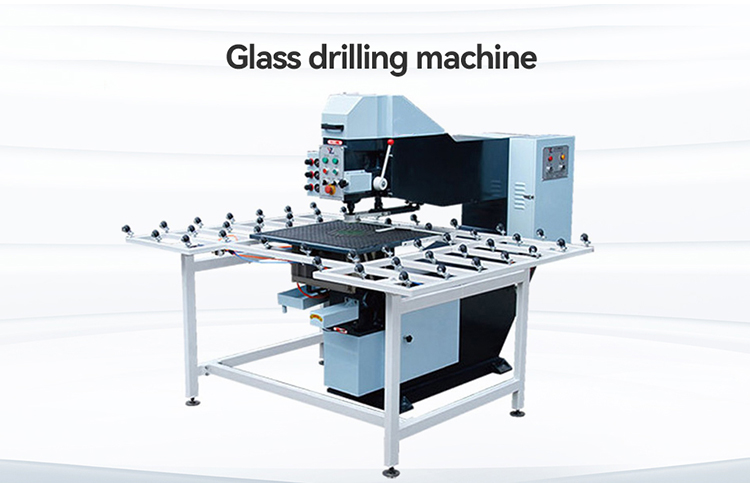

ZYZ0222 glass drilling machine can be used for continuous mass production and processing.
◆Laser positioning, drilling is alternatively done by upper and reverse drills, feeding is automatically operated, automatic remove wasted glass.
◆The machine is adopted pneumatically grip.
◆Operation platform can be pneumatically elevated. It combined function of semi-automatically controlled and automatically controlled.
◆With auto feeding function, the worktable can move up and down pneumatically.
◆Laser positioning, drilling is alternatively done by upper and reverse drills, feeding is automatically operated, automatic remove wasted glass.
◆The machine is adopted pneumatically grip.
◆Operation platform can be pneumatically elevated. It combined function of semi-automatically controlled and automatically controlled.
◆With auto feeding function, the worktable can move up and down pneumatically.
| Model | ZYZ0222A/ ZYZ0222 |
| Voltage | 380v |
| Power(W) | 3kw |
| Glass thickness | 2-40mm |
| Drilling diameter | Φ4-Φ220mm |
| Max. processing glass size | 3600*2400mm |
| Max. processing glass width | 80mm |
| Dimension | 2200*2600*1800mm |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
