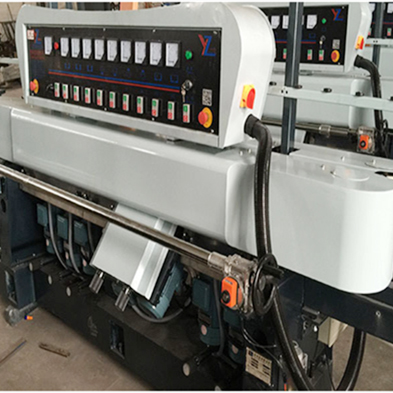

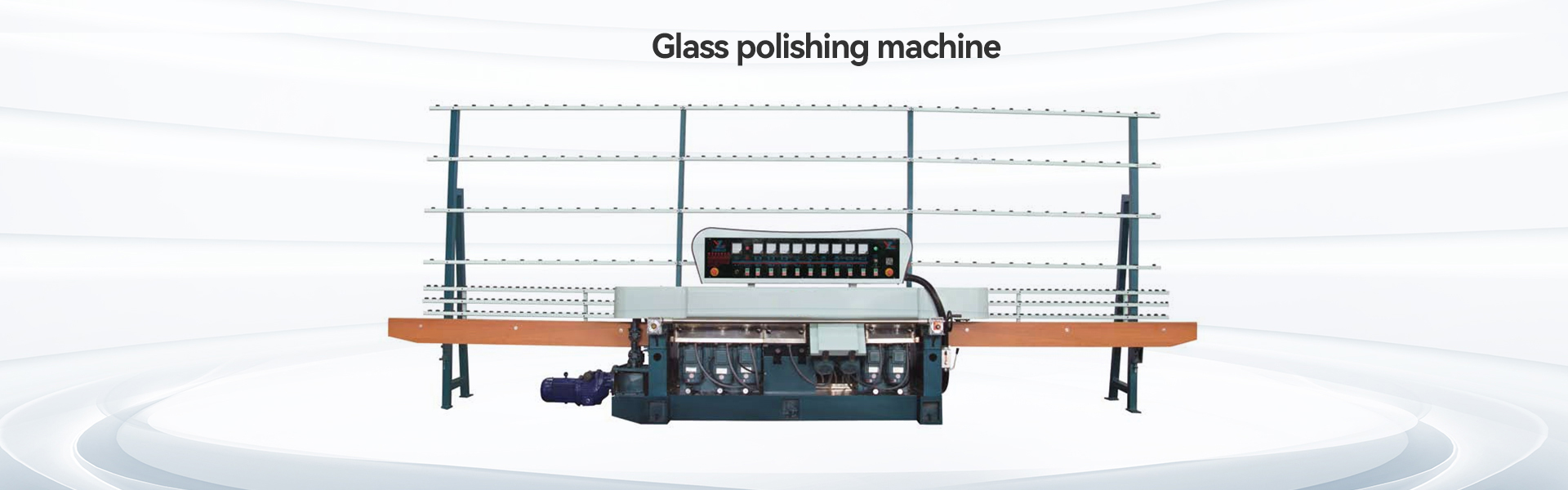

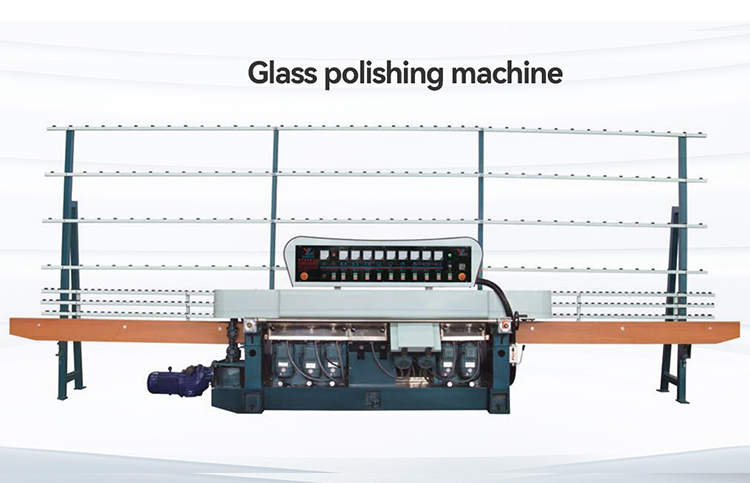

Glass straight line edging machine is suitable for different size and thickness flat glass grinding, it can rough grinding、fine grinding and polishing finish in one time.

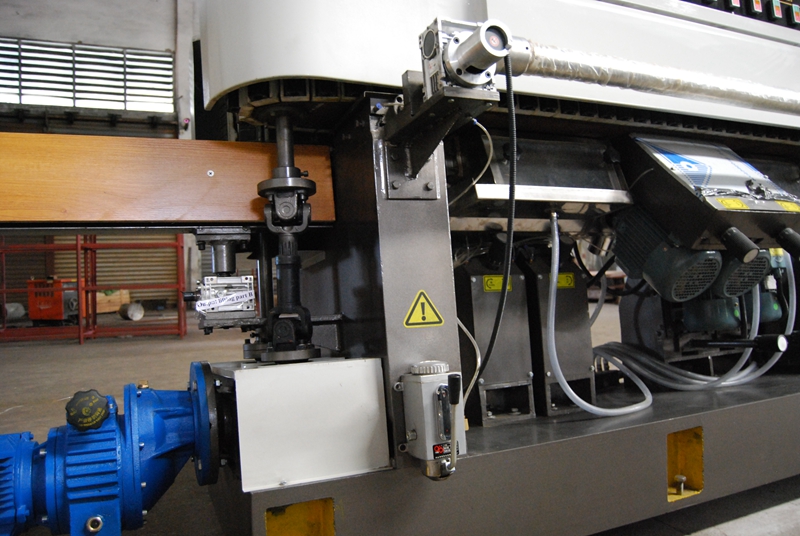

◆Base、Beam、Swing frame、upright all is used by high-quality castings, strong and stable body, square beam never deformation.
◆Senior special energy-saving motors ’XINDONGYA’ or‘JIANQIANG’brand,advanced turbine gearbox.
◆2.2KW big range speed governor, JIALI worm gear box, transmission more durable.
◆Chain transfer, thicken square tube frame can load thicken glass to process.
◆The wheel is used by CHAORUI、Oasis New; bottom polishing wheel is10S40、CE3 or SD001,the polishing effect is similar to mirror surface.
◆This machine can accord customer’s requirement to design.
◆Base、Beam、Swing frame、upright all is used by high-quality castings, strong and stable body, square beam never deformation.
◆Senior special energy-saving motors ’XINDONGYA’ or‘JIANQIANG’brand,advanced turbine gearbox.
◆2.2KW big range speed governor, JIALI worm gear box, transmission more durable.
◆Chain transfer, thicken square tube frame can load thicken glass to process.
◆The wheel is used by CHAORUI、Oasis New; bottom polishing wheel is10S40、CE3 or SD001,the polishing effect is similar to mirror surface.
◆This machine can accord customer’s requirement to design.
| Model | ZM4325 | ZM9325 | ZM10325 | ZM11325 |
| Wheels number | 4 | 9 | 10 | 11 |
| Min. grinding size | 80×80mm | 80×80mm | 80×80mm | 80×80mm |
| Working speed | 0.8-5m/min | 0.8-5m/min | 0.8-5m/min | 0.8-5m/min |
| Glass thickness | 3-25mm | 3-25mm | 3-25mm | 3-25mm |
| Power(W) | 9kw | 18.5kw | 21kw | 22kw |
| Weight | 1800kg | 2800kg | 3000kg | 3200kg |
| Dimension | 5.7×1.0×2.5m | 6.8×1.0×2.5m | 7×1.0×2.5m | 7.1×1.0×2.5m |
